Oat Mountain Broadcast Booster Facility 2(preliminary)

Site elevation:   3617' / 1114m AMSL

County of operation:   Los Angeles County

Location:   N34 19 48.12 / W118 35 59.01 NAD83

                  N34 19 48.12 / W118 35 55.69 NAD27

                 34 19 48.12N,  118 35 55.69W (Google Earth)

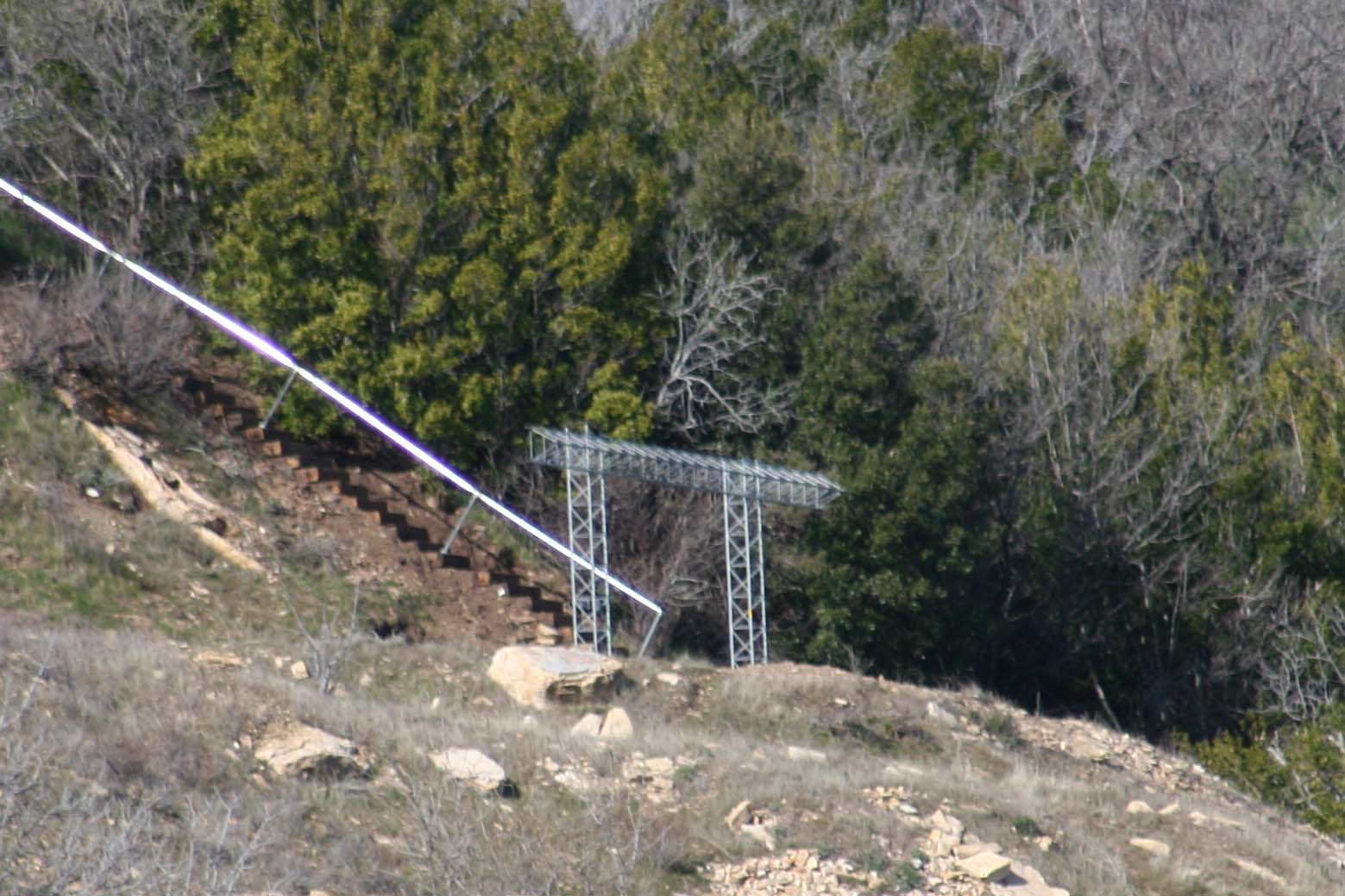

Antenna Support:  3.962m (13') high "H" Structure

634m (2080')HAAT@ ground level

Land owner:   Private

Physical location:   27520U Oat Mountain Chatsworth, CA 91311

Legal Location: Saugus, CA  91350

Site Phone:   818 208-4286  (Fireline Ext. 2006)

Emergency Power:  60KW Kohler with 500 gallon propane tank

Security:  24 hour building alarm and recorded video cameras

Link to Pan-O-Rama view from the site.

Click on the picture to zoom in.

25 Watt Transmitter (114.82 Watt ERP)

100' LDF4-50 Heliax cable

Kathrein/Scala CL7150h (7.3dbd) Log Periodic antenna mounted horizontally

Test Frequency 100.0 MHz.

Antenna direction 030 degrees True

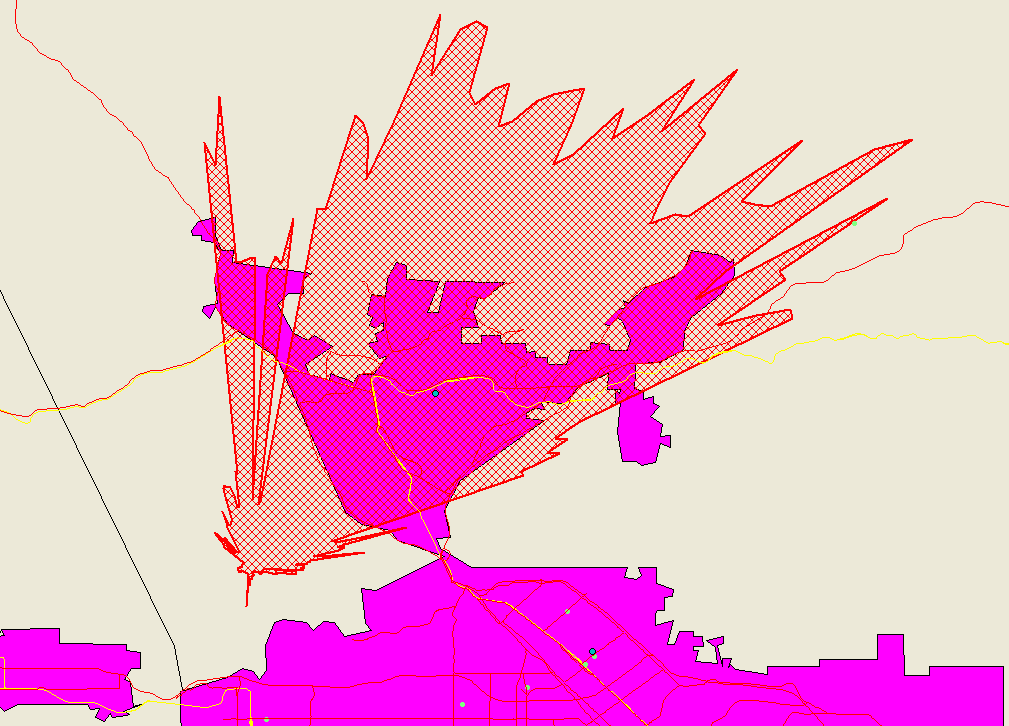

Plots may differ with actual broadcast antennas
