Oat Mountain Broadcast Booster Facility 1(preliminary)

            Site elevation:   3689.89' / 1125m  AMSL

County of operation:   Los Angeles County

Location:    N34 19 47.83 / W118 36 00.73 NAD83

                   N34 19 47.83 / W118 35 57.41 NAD27

                  34 19 47.83N, 118 35 57.41W (Google Earth)

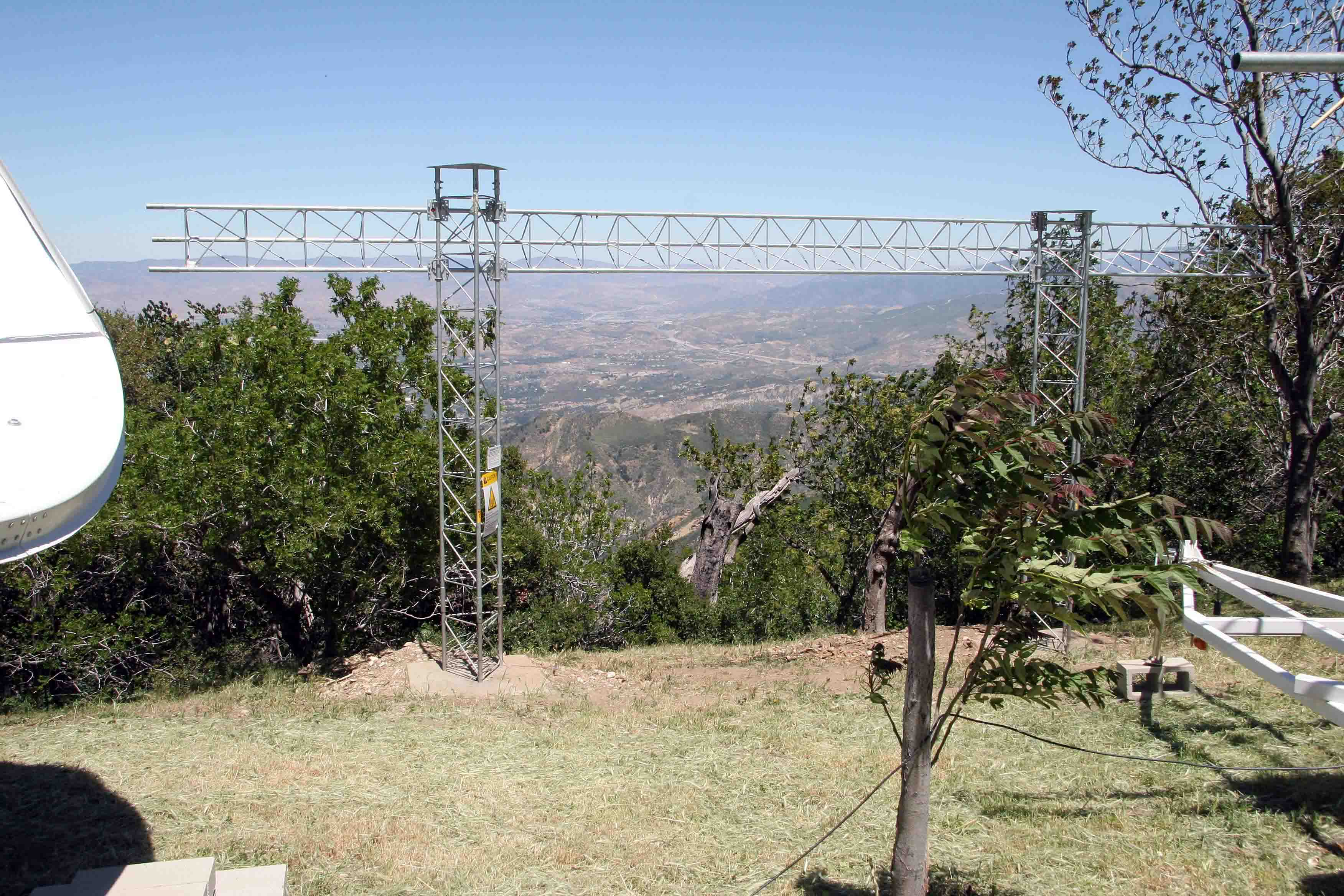

Antenna Support:  3.962m (13') high "H" Structure

657m (2155') HAAT@ ground level

Land owner:   Private

Physical location:   27520U Oat Mountain Chatsworth, CA 91311

Legal Location: Saugus, CA  91350

Site Phone:   818 208-4286  (Fireline Ext. 2006)

Emergency Power:  60KW Kohler with 500 gallon propane tank

Security:  24 hour building alarm and recorded video cameras

Link to Pan-O-Rama view from the site.

Click on the picture to zoom in.

25 Watt Transmitter (114.82 Watt ERP)

100' LDF4-50 Heliax cable

Kathrein/Scala CL7150h (7.3dbd) Log Periodic antenna mounted horizontally

Test Frequency 100.0 MHz.

Antenna direction 030 degrees True

Plots may differ with actual broadcast antennas
