AirSites2000, LLC

Serving the Wireless Telecommunications Industry with communications facilities and towers

           Site Elevation:  3870.7' AMSL (NAVD 88)

                                      3868.0' AMSL (NAVD 29)

           County of operation:   Orange County

           Location:   N33 47 56.5 / W117 37 24.2 NAD 83

                              N33 47 56.5 / W117 37 21.0 NAD 27

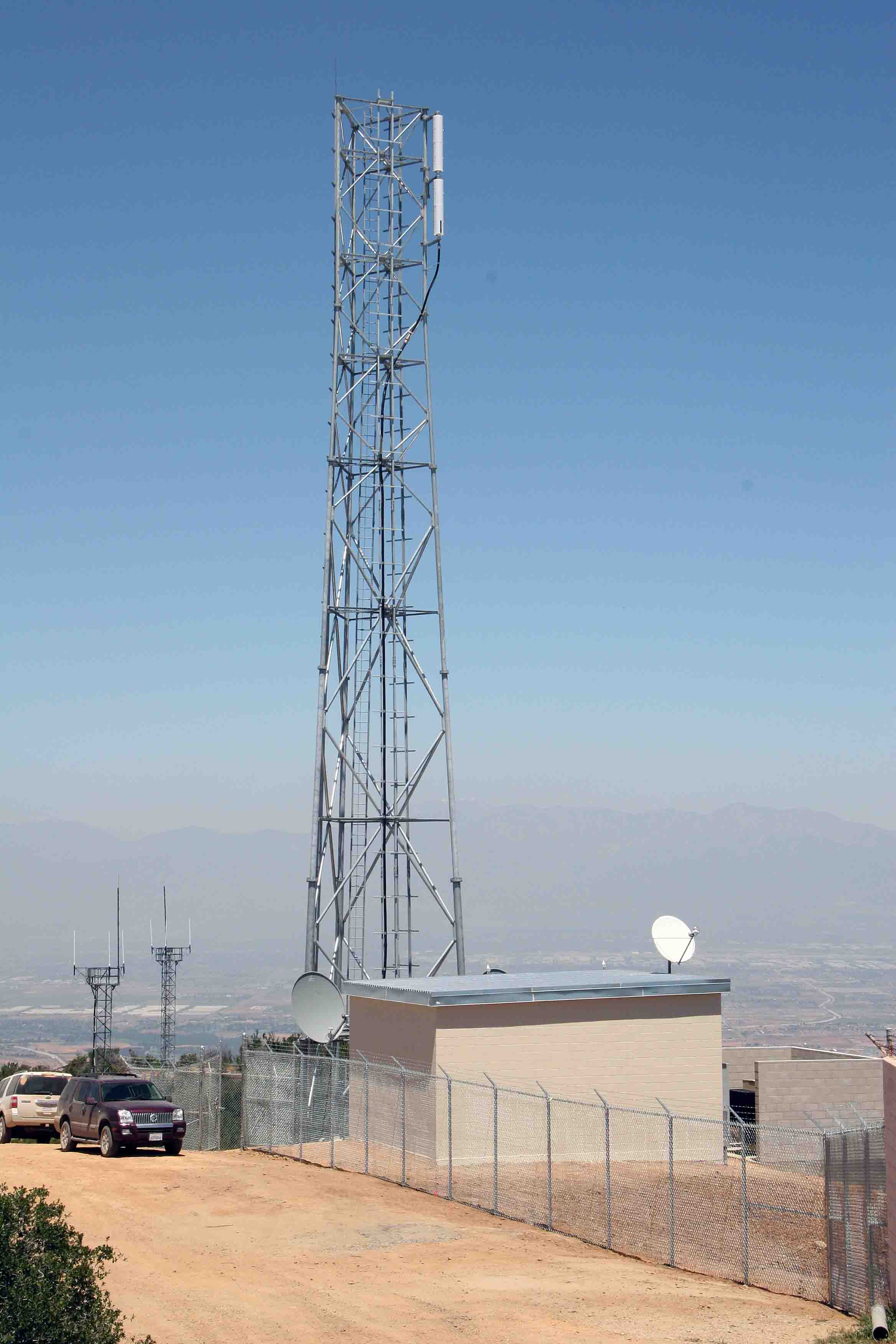

           Support structure:   100' Tower

           Land owner:   Private

Physical address:   11226 Blackstar Canyon,





                                   Silverado, CA. 92676

















Los Angeles / Orange County 52nd edition Thomas Guide page 802 G2

           Site phone:   951 667-7601 (Ring Central Ext. 209)

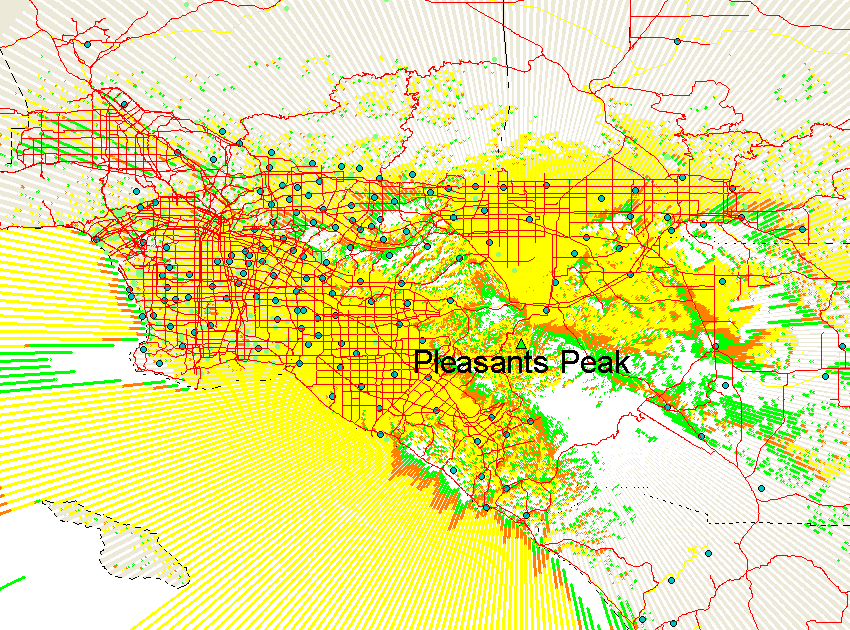

50 watt ERP to a mobile receiver on a 1/4 wave antenna 6 feet above the ground

yellow is >10uv for 12db SINAD

brown is >1uv for 12db SINAD

green is >.25uv for 12db SINAD

white is <.25uv for 12db SINAD
