AirSites2000, LLC

Serving the Wireless Telecommunications Industry with communications facilities and towers





Site elevation:   3698.67' AMSL

County of operation:   Los Angeles County

Location:   N34 19 46.76 / W118 36 00.41 NAD83

Support structure:   60' Tower

18.28m Tower

657m (2155')HAAT@ ground level

Land owner:   Private

Physical location:   27520U Oat Mountain Motorway, Saugus,

                                 CA.  91350

Site phone:   818 396-8271 (Ring Central Ext. 206)

Emergency Power:  60KW Kohler with 500 gallon propane tank

Security:  24 hour building alarm and recorded video cameras

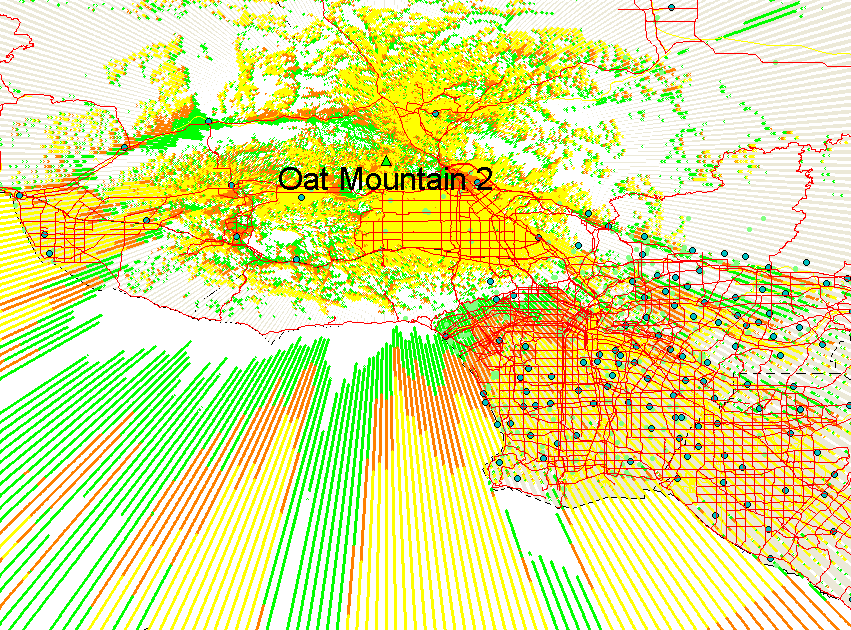

50 watt ERP to a mobile receiver on a 1/4 wave antenna 6 feet above the ground

yellow is >10uv for 12db SINAD

brown is >1uv for 12db SINAD

green is >.25uv for 12db SINAD

white is <.25uv for 12db SINAD
