                                    Site elevation:   2816.25' AMSL

                                    County of operation:   Los Angeles County

                                    Location:   N34 09 16.26 / W117 48 03.13 NAD83

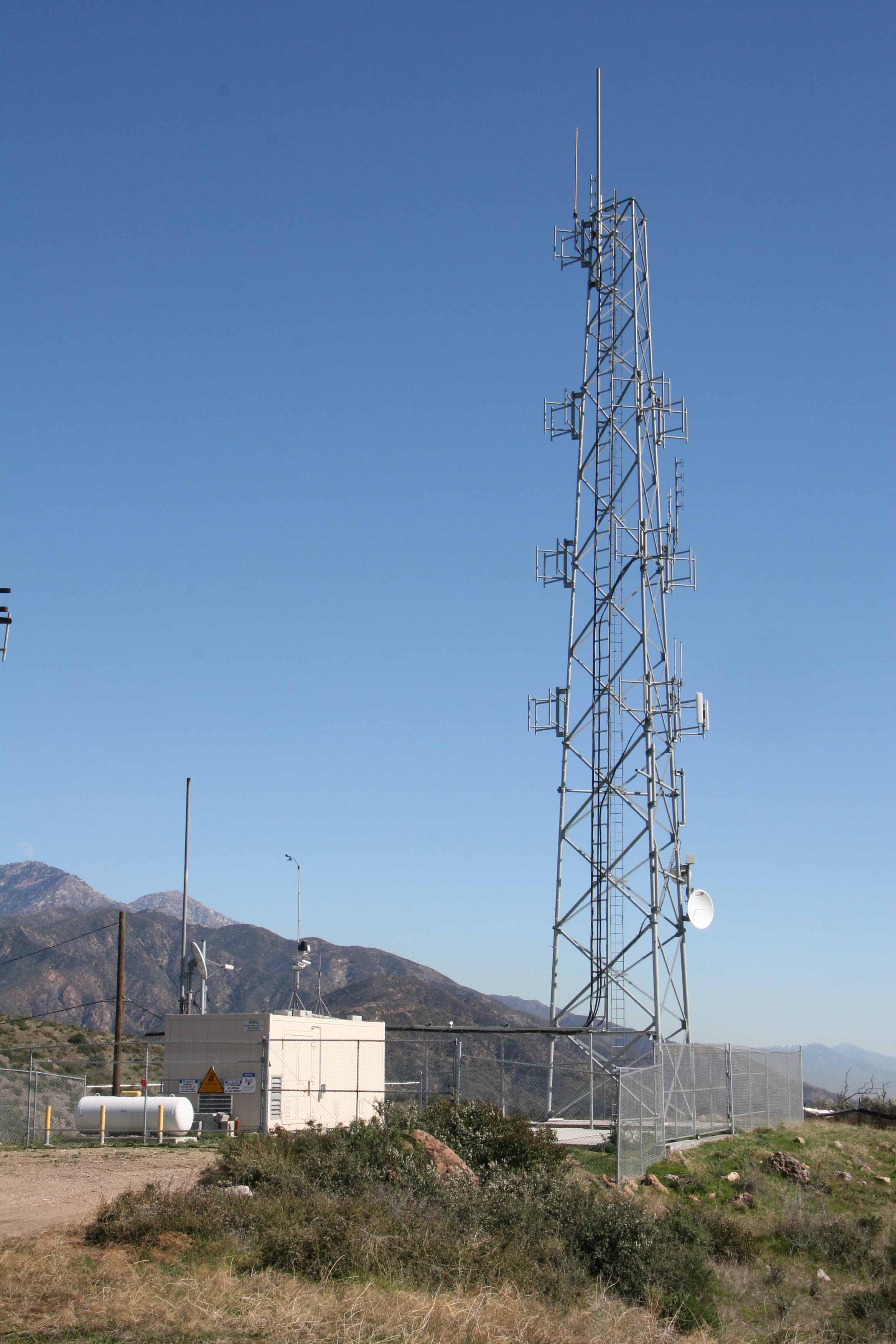

                                    Support structure:   Tower

                                    100' (30.5m) Tower

                                    Land owner:   USFS

                                    Physical address:   8251U Sycamore Flats Motorway,

                                                             Angeles National Forest, San Dimas, CA. 91773

                                    Site phone:   909 587-5601 (Ring Central Ext. 204)

                         Emergency Power:  60KW Kohler with 500 gallon propane tank

                         Security:  24 hour building alarm and recorded video cameras

                         USFS Form FS-2700-10 required.  Click here for the electronic form



50 watt ERP to a mobile receiver on a 1/4 wave antenna 6 feet above the ground

yellow is >10uv for 12db SINAD

brown is >1uv for 12db SINAD

green is >.25uv for 12db SINAD

white is <.25uv for 12db SINAD
